Sunward SWDR138

Quarry blasting · Integrated compressorInquire about this machine ↗

Used Sunward SWDR138 DTH drilling rig, equipment ID EB-766330. Base purchase comparisons on this machine's actual configuration, inspection information and quotation scope.

Brand: Sunward
Model: SWDR138
Location: China · Specific site provided as needed

Price statusPlease provide the current price

Machine applications

Sunward SWDR138 is a multifunction rotary cutting and DTH drilling rig that can use rotary cutting or DTH percussion according to ground conditions. High-speed, high-torque cutting suits the corresponding rock formations; DTH drilling can be used in harder rock for holes in surface mines and quarries..

Quarry bench and blast-hole drilling
Surface mining production drilling
Construction rock drilling

Technical Parameters & Equipment Features

Equipment performance and construction applications

Sunward SWDR138 · Technical Features and Applications Main Technical Features • Rotary cutting and DTH drilling operating modes • High-speed, high-torque cutting • Select cutting or down-the-hole percussion according to rock conditions Construction Applications • Surface mine production drilling • Quarry blast holes • Rock drilling in alternating soft and hard rock layers

Machine features

A down-the-hole drilling method for surface rock operations

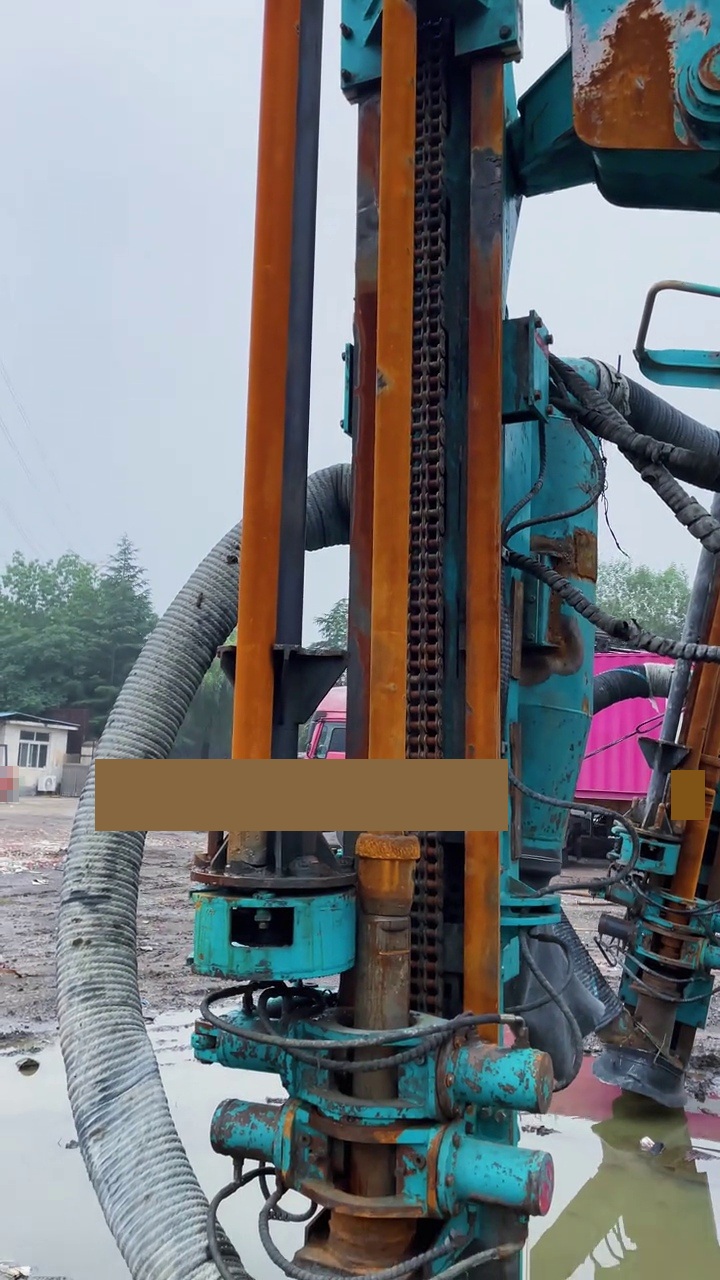

Mast and feed structure arranged for blast-hole drilling

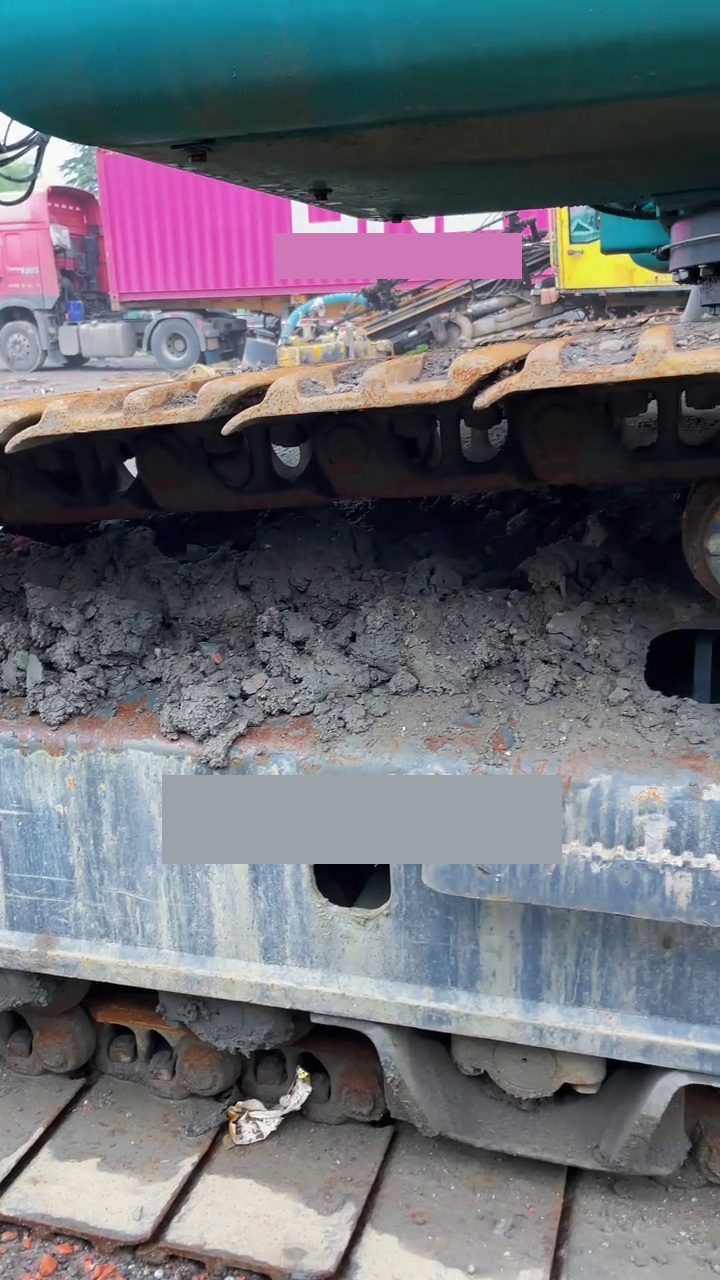

Crawler layout for moving between working positions

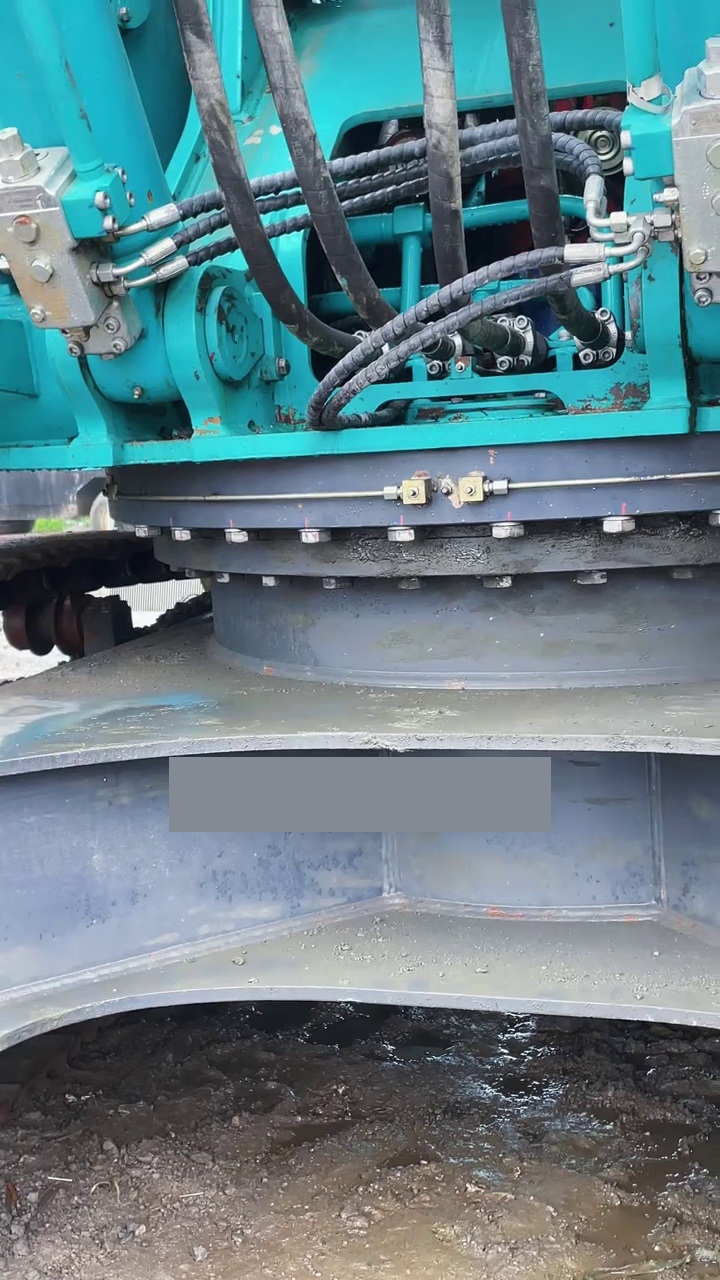

Actual machine photos showing the current appearance, structure, and visible condition of this used equipment.

Front view of the used Sunward SWDR138 drilling equipment

Buyer considerations

Is this machine suitable for your project?

Provide the planned hole diameter, depth, rock and destination when requesting a quotation. Check the full model on the nameplate, drill rods, DTH hammer, air supply and dust collection configuration, and request cold-start, feed, rotation and travel videos; Do not apply parameters from models with other suffixes directly to this machine.

Technical specifications

Machine details

Hole diameter: 105–165 mm
Maximum depth: 24 / 35 m
Compressor: 18.6 m³/min · 20 bar
Engine: QSB7-C187 · 140 kW
