Rotary Drilling Rigs · EB-288BFA67C7
SANY SR360R
Foundation and piling engineeringInquire about this machine ↗Used SANY SR360R rotary piling rig for foundation, piling and bored cast-in-place pile construction.
- Brand
- SANY
- Model
- SR360R
Machine applications
SANY SR360R is a large rotary drilling rig for large-diameter and deeper foundation pile holes. Friction and interlocking kelly bars correspond to different drilling depths; consider ground, bar combinations and tool requirements when selecting equipment.
- Geotechnical engineering projects
- Bored cast-in-place pile foundation construction
- Municipal and infrastructure foundation engineering
Technical Parameters & Equipment Features
Equipment performance and construction applications
SANY SR360R · Technical Features and Applications Technical Parameters Maximum pile diameter: 2500 mm Maximum pile depth (friction/interlocking kelly bar): 100/65 m Maximum rotary head output torque: 360 kN·m Rotary head speed: 5–25 r/min Crowd force: 290 kN Main winch lifting force: 360 kN Main Technical Features • Friction and interlocking kelly bar combinations selectable according to construction requirements • Rotary head and crowd system matched to pile drilling • Main winch for lifting drill rods and drilling tools Construction Applications • Bored pile building foundations • Bridge and transport infrastructure pile foundations Configuration and Selection Parameters apply to the 2017 version of SR360R C10; H10/E10 and other generations have different configurations. Maximum pile depth depends on the friction or interlocking kelly bar combination and working conditions.
Machine features
- Rotary drilling system for basic drilling operations
- Mast, slewing drive and feed device for piling operations
- Crawler-type work layout for positioning around foundation construction sites

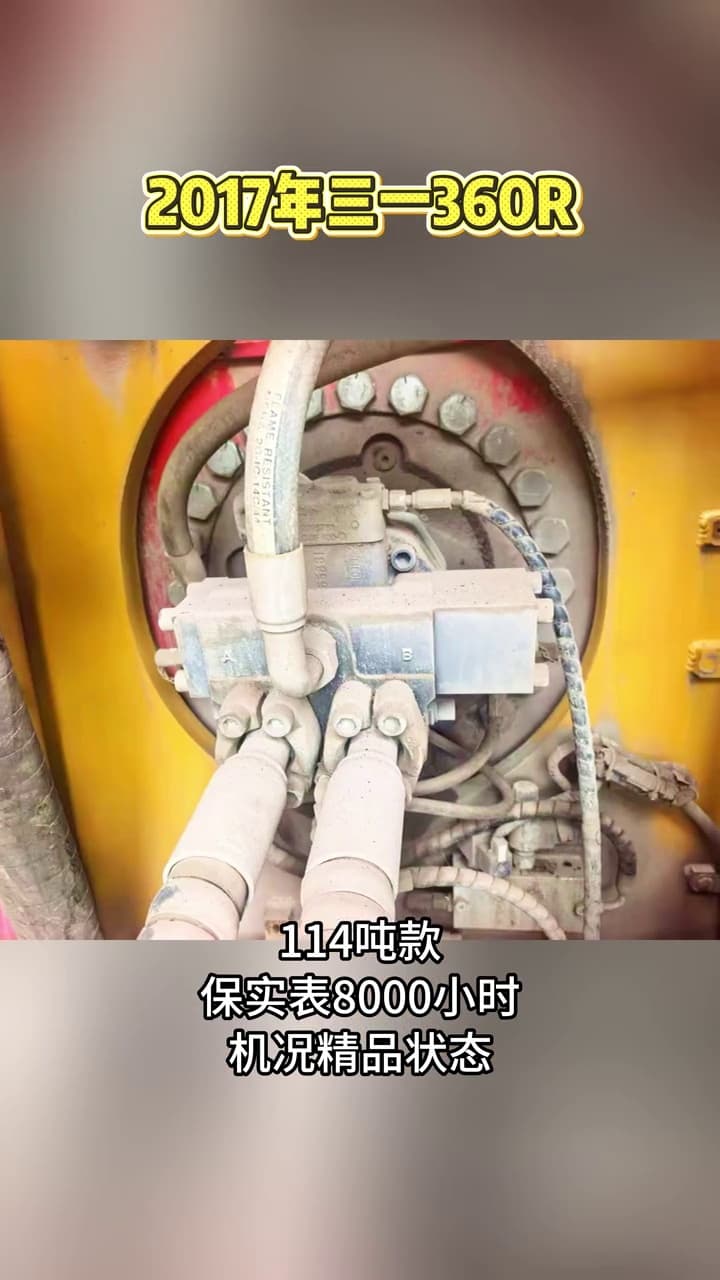

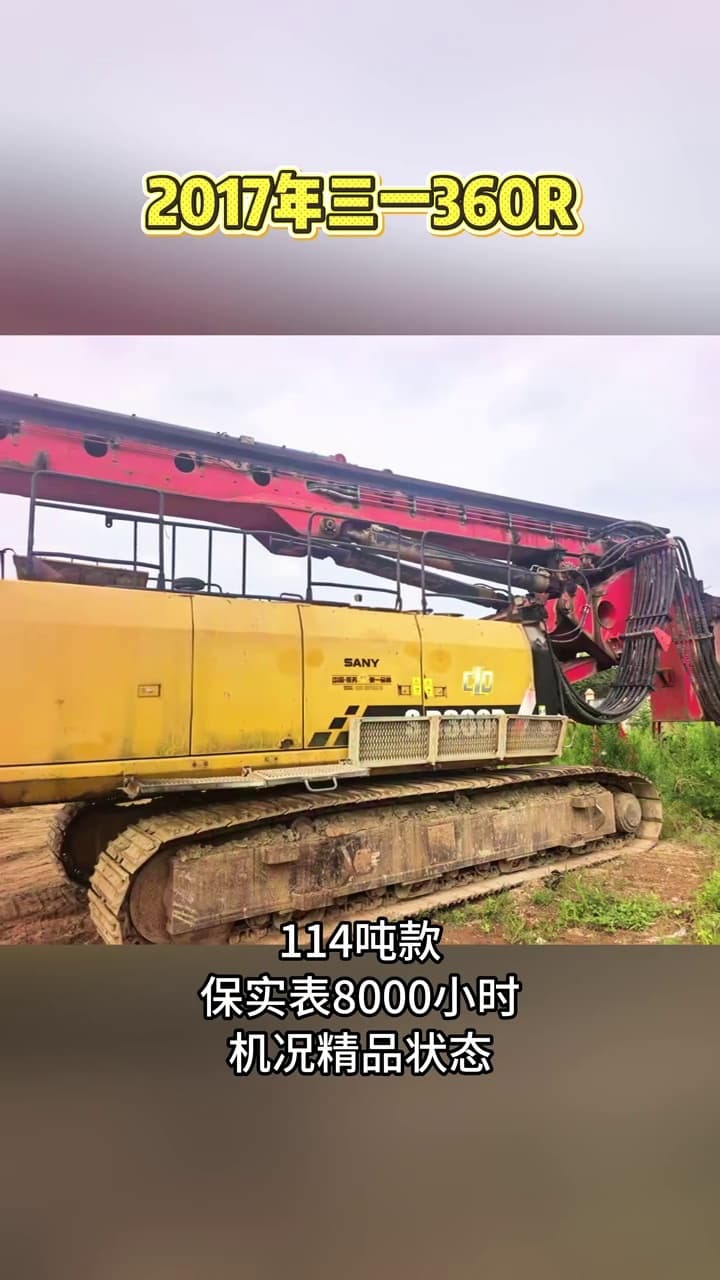

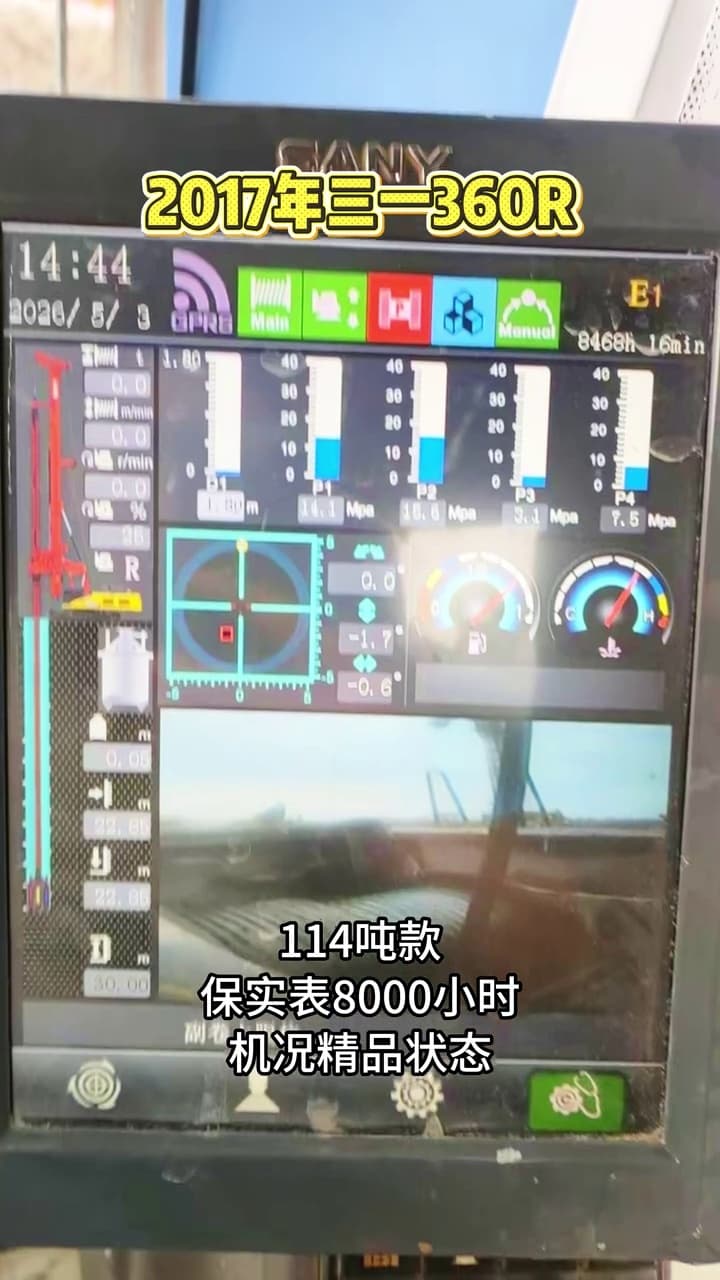

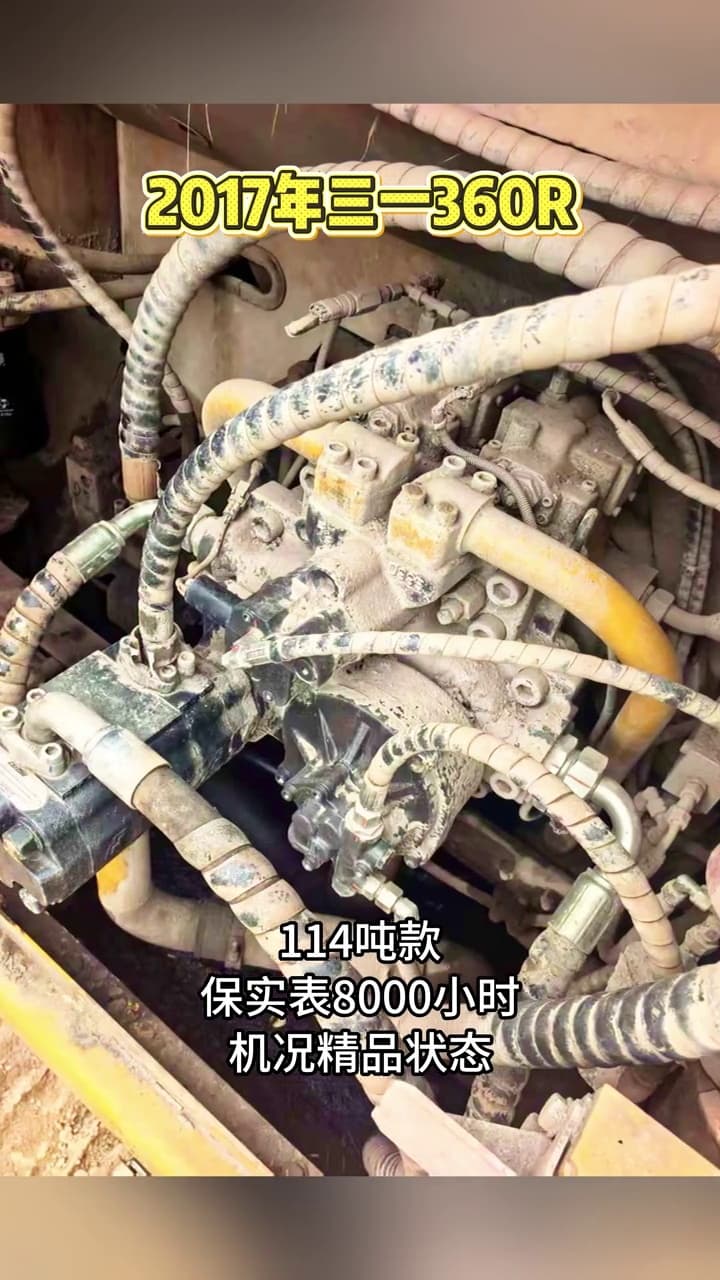

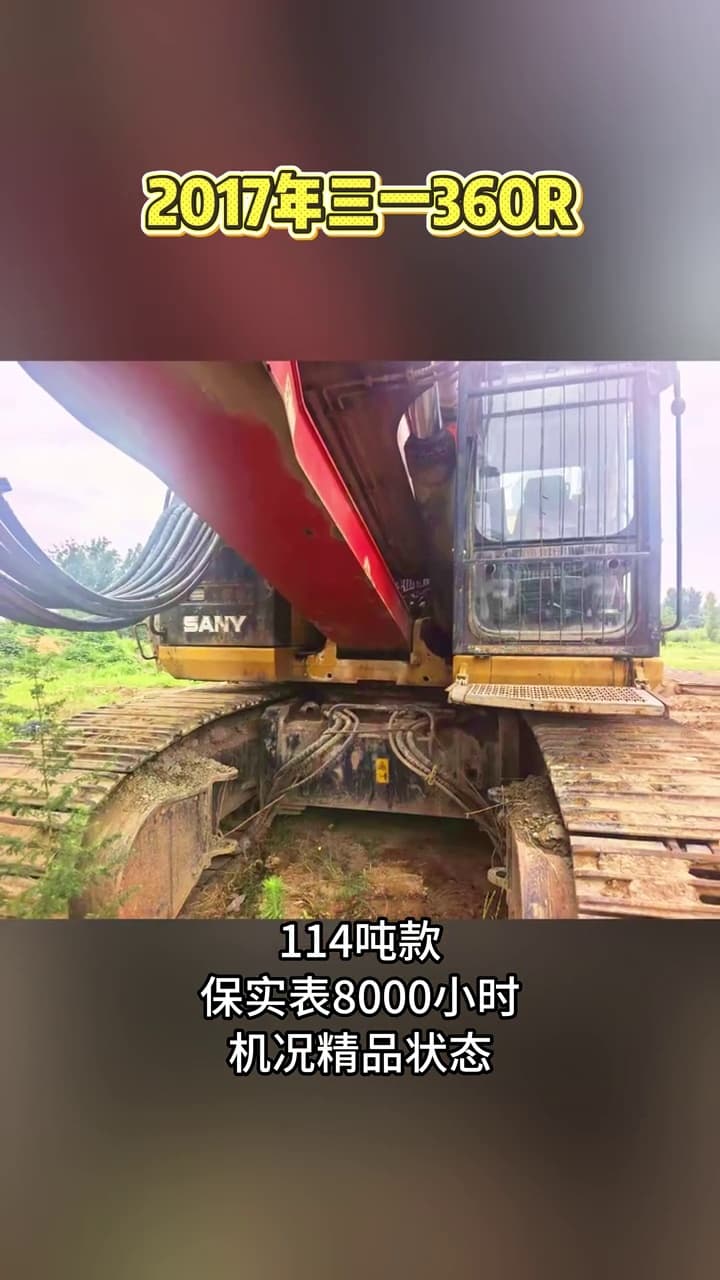

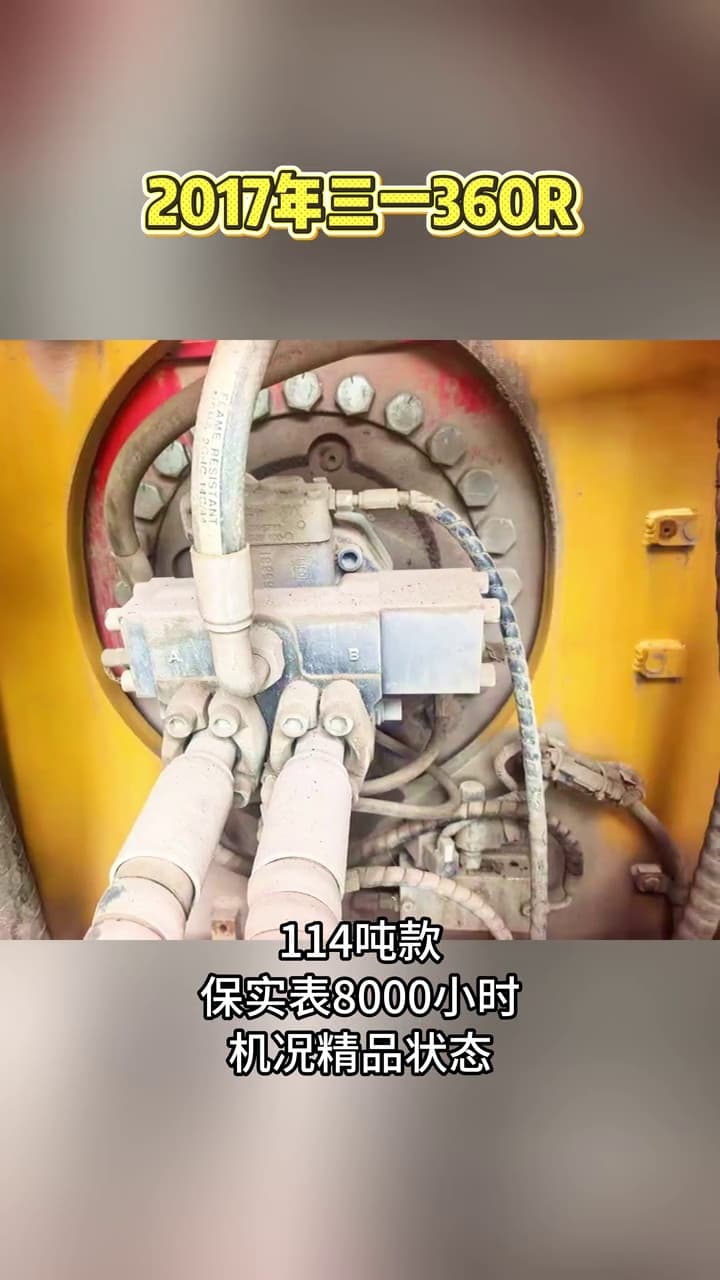

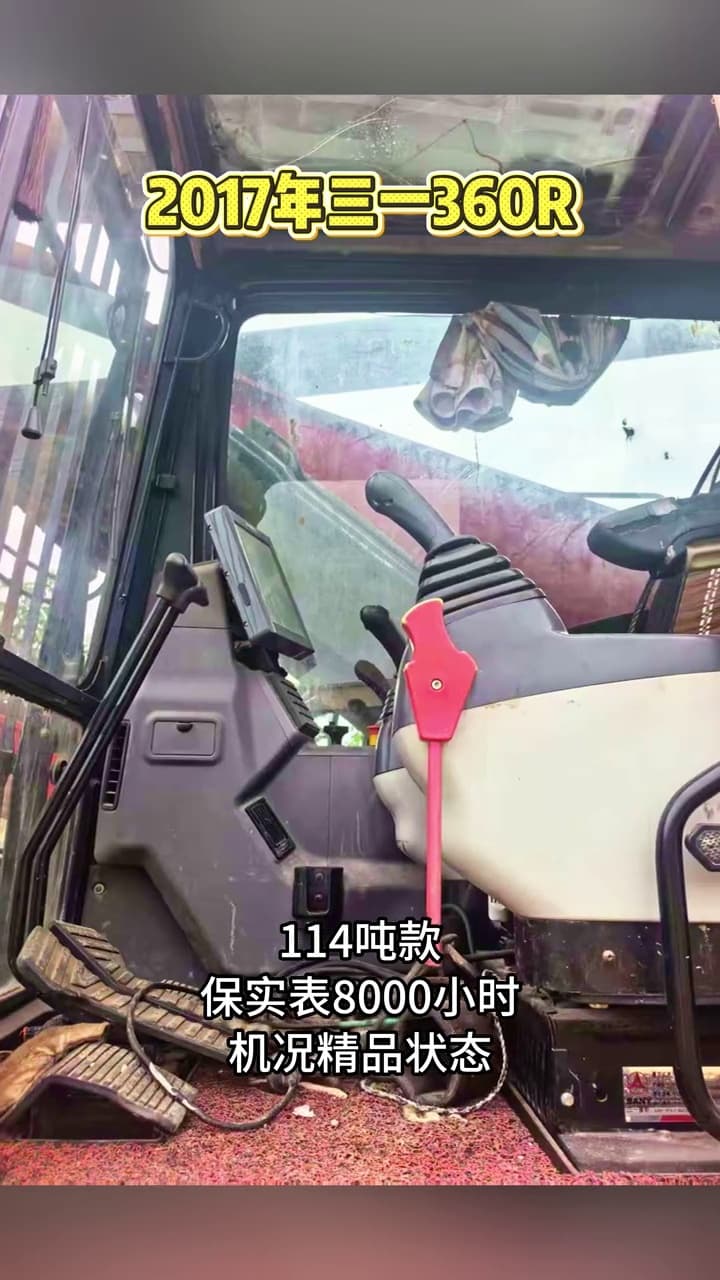

Actual machine photos showing the current appearance, structure, and visible condition of this used equipment.
Buyer considerations
Is this machine suitable for your project?
Before arranging inspection or transport, please confirm with GLOBMACH the configurations available on the machine, availability, and purchase details.
Inquire about this machine
